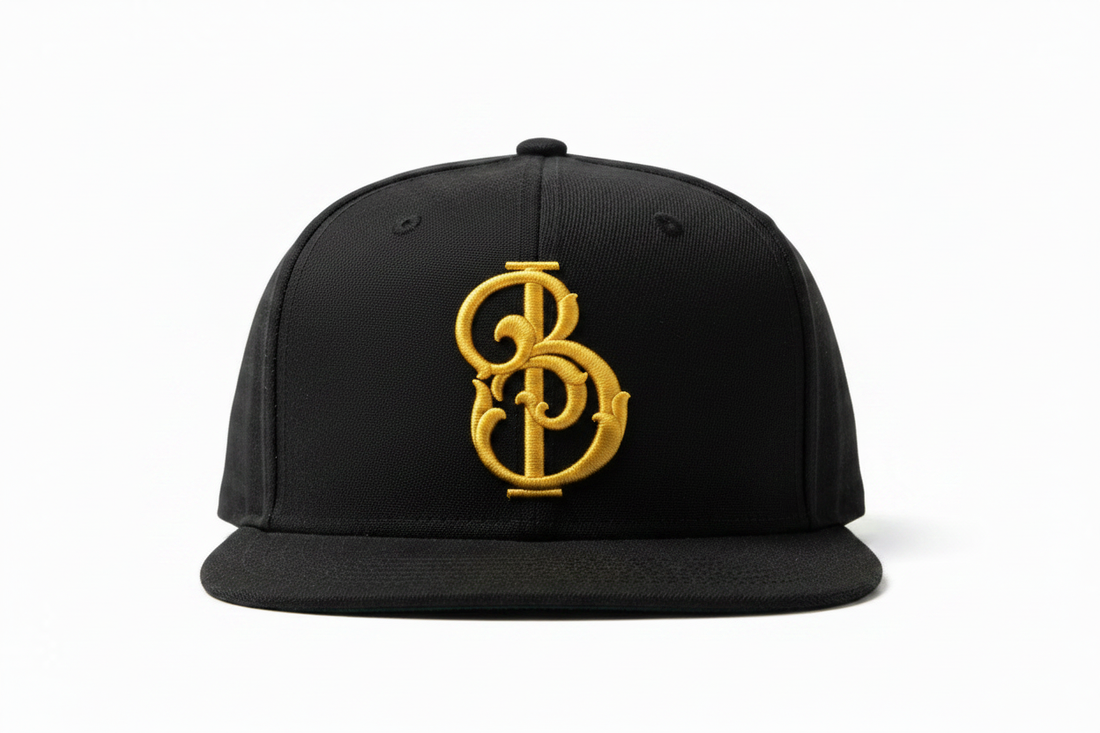

3D puff embroidery — also known as foam embroidery — is one of the most visually striking techniques in the embroidery world. That bold, raised effect you see on premium snapback caps, streetwear hoodies, and luxury branded merchandise? That's puff embroidery done right.

In this guide, we'll walk you through everything you need to know: what foam embroidery is, how it works, which designs work best, and how to get production-ready results every time.

What Is 3D Puff Embroidery?

3D puff embroidery uses a layer of foam placed under the embroidery stitches to create a raised, three-dimensional effect. The machine stitches directly over the foam, compressing it at the edges and leaving the center elevated — giving the design a bold, sculptural look that stands out from flat embroidery.

It's the go-to technique for:

  • Snapback and fitted cap front panels
  • Streetwear chest logos and sleeve hits
  • Sports team wordmarks and numbers
  • Corporate branded merchandise with premium feel
  • Varsity and collegiate lettering

What You Need to Get Started

Before you run your first puff embroidery job, make sure you have the right materials:

  • Puff foam / 3D foam: Available in 2mm, 3mm, and 6mm thickness. 3mm is the most common for cap embroidery. Choose the thickness based on how dramatic you want the lift.
  • Stabilizer: Use a firm cutaway stabilizer for caps and structured fabrics. Tearaway works for stable woven fabrics.
  • Thread: 40-weight polyester or rayon thread works best. Avoid metallic threads for puff fills — they tend to break under the tension required.
  • Sharp needles: Use a size 75/11 or 80/12 sharp needle. Puff foam requires clean needle penetration to avoid tearing.
  • A digitized puff embroidery file: This is the most critical element — standard embroidery files will NOT work correctly for puff. The file must be specifically digitized for foam.

How Puff Embroidery Digitizing Differs from Standard Embroidery

This is where most beginners go wrong. You cannot simply take a regular embroidery file and run it over foam. A proper puff embroidery file requires specific digitizing adjustments:

  • Increased density: Stitch density must be higher than flat embroidery to fully cover and compress the foam edges cleanly.
  • Satin stitch fills: Satin stitches (long, parallel stitches) are the standard fill for puff embroidery. They compress the foam edges and create a smooth, rounded top surface.
  • No underlay stitches over foam: Underlay stitches that work well for flat embroidery will pierce and tear the foam before the top stitches are laid. The digitizing must account for this.
  • Wider pull compensation: Foam causes more fabric pull than flat embroidery, so the digitizer must add extra pull compensation to keep shapes accurate.
  • Simplified shapes: Fine details, thin lines, and small text do not translate well to puff. Bold, simple shapes with clean edges produce the best results.

Our 3D Font Embroidery Files are professionally digitized specifically for puff embroidery — ready to run over foam straight out of the download.

Step-by-Step: Running a 3D Puff Embroidery Job

  1. Hoop your garment with stabilizer. For caps, use a cap frame and firm cutaway backing. The fabric must be taut with zero movement.
  2. Load your puff-digitized embroidery file. Confirm the file format matches your machine (PES for Brother, DST for Tajima, JEF for Janome).
  3. Run the base/tack-down stitches. Most puff files include a light tack-down pass that outlines the design area. This is where you pause to place the foam.
  4. Place the foam over the design area. Cut the foam slightly larger than the design. Hold it in place — it will be secured by the stitches.
  5. Resume the embroidery run. The machine will stitch over the foam, compressing the edges and building up the raised fill.
  6. Tear away excess foam. Once the design is complete, carefully tear away the foam from around the edges. Use tweezers for tight corners.
  7. Inspect and trim. Check for any foam showing at the edges and trim with small scissors. A heat gun on low can help shrink minor foam exposure.

Best Designs for 3D Puff Embroidery

Not every design works well in puff. Here's what performs best:

  • Bold block letters and wordmarks — the wider the letterform, the more dramatic the puff effect. Our Fonts collection includes multiple styles optimized for 3D embroidery.
  • Sports team logos — classic cap designs like the Dodgers and Astros wordmarks are iconic in puff embroidery.
  • Varsity and collegiate lettering — thick stroke letterforms are ideal for foam lift.
  • Simple icons and emblems — bold shapes with clean outlines, no fine detail.

Avoid: thin script fonts, fine line art, photorealistic designs, and anything with elements smaller than 5mm wide.

Troubleshooting Common Puff Embroidery Problems

  • Foam tearing during stitching: Your needle may be dull, or the foam is too thin for the design size. Switch to a fresh sharp needle and try 3mm foam.
  • Foam showing at edges: Stitch density is too low, or pull compensation is insufficient. The digitizing needs adjustment.
  • Flat result, no lift: The foam was placed after the fill stitches instead of before. Always place foam after the tack-down pass, before the fill.
  • Thread breaks: Reduce machine speed to 600–700 SPM for puff embroidery. The extra resistance from foam increases thread tension.
  • Design distortion: Increase pull compensation in your digitizing software, or re-hoop with tighter tension.

Foam Thickness Guide

  • 2mm foam: Subtle lift, good for smaller designs under 2 inches. Works on soft garments like t-shirts.
  • 3mm foam: The industry standard for cap embroidery. Balanced lift with good edge definition.
  • 6mm foam: Maximum drama. Used for oversized streetwear logos and statement pieces. Requires high-density digitizing.

Get Production-Ready Puff Embroidery Files

The fastest way to get great puff embroidery results is to start with a file that's already digitized correctly for foam. Master Digitizer's 3D embroidery files are built for production — tested on commercial machines, with correct density, pull compensation, and satin fill settings already dialed in.
